TrainerRoad 2.2 Beta
We’ve just added a new beta to the bottom of www.trainerroad.com/install.
TrainerRoad 2.3.0 is out, get it at www.trainerroad.com/install.
Here’s what’s new in a nutshell.
- Collapsed Device Page
- Manual Zero ANT+ Power Meters
- Improved Rolldown Support for Wahoo Kickr, Kinetic inRide and CycleOps Power Beam Pro
- New Client/Server API to make communication faster and more reliable.
This isn’t a major feature update but there has been a lot of work put into it.
Collapsed Device Page
We’ve collapsed devices when they aren’t paired. This makes it easier to see what’s available and what you have paired.
Zero ANT+ Power Meters

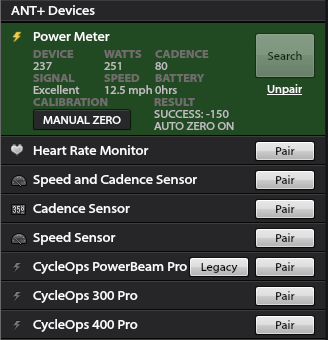

We’ve added the ability to manually zero ANT+ power meters that support it. When you click the “manual zero” button pictured below, we’ll send a “zero” request to the power meter. If your power meter supports it you’ll get back a success or fail message. Make sure you’re off the bike when you manually zero your power meter.
So, what does zeroing do?
You can think of zeroing your power meter like hitting “tare” on a normal kitchen scale. Your power meter is full of super sensitive strain gauges. We want to tell your power meter that it currently doesn’t have any load on it, and that it should use this as it’s “zero” point when measuring load.
When do I want to do it?
How often you calibrate your power meter depends on your power meter. But, a good rule is to do it once before each ride. You’ll especially want to do it if you have a big temperature swing as this affects most power meter readings.
Improved Rolldown Calibration Support

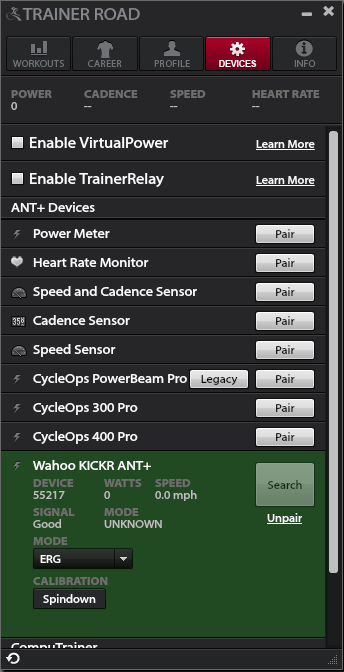

We’ve added and improved roll down support for the Kinetic inRide, Wahoo Kickr and CycleOps Power Beam Pro. Here’s how it works. We’ve added a spin down button when the devices are paired.
Spindown
To initiate spindown calibration, just click the “spindown” button or push “c” on the keyboard. The app will start the calibration process with your trainer. Then just hop on your bike and follow the instructions.

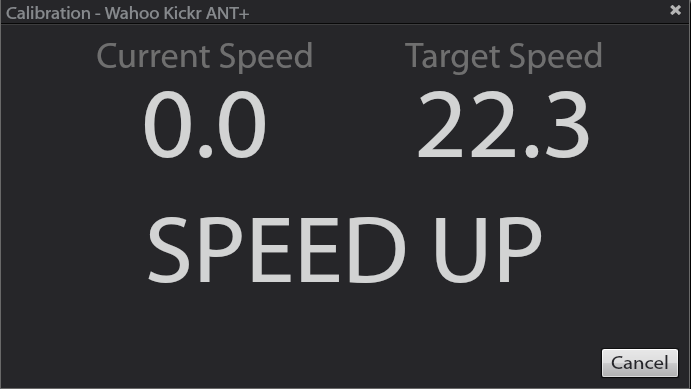

Once the trainer is calibration mode spin up to the target speed. In the second screen shot below you can see that you need to spin up to a speed greater than 22.3 mph (it will show kph if that’s what you have in your profile) when on the Wahoo Kickr.
Coast to Finish

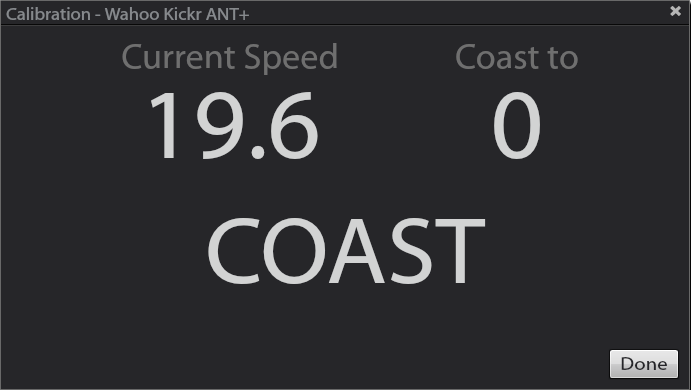

After you’ve hit the target speed the instructions will change and tell you to coast. Stop pedaling and let your trainer spin down.
Calibration Successful
Once the spin down is complete your trainer is calibrated and ready to go. Just click done and get one with your workout. If your calibration isn’t successful you might need to change your tire tension. This is most common with the inRide and TrainerRoad will tell you to increase or decrease tension.
Power Beam Pro Calibration

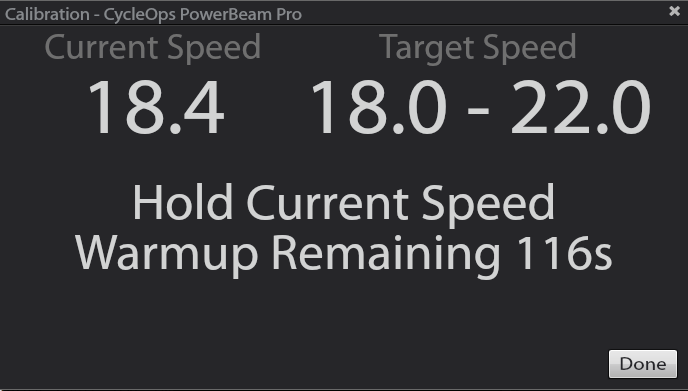

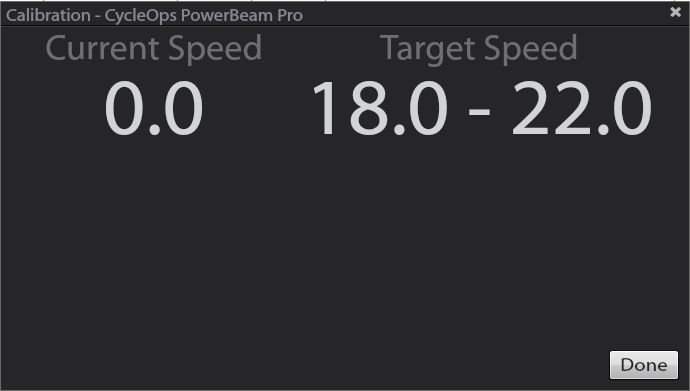

The power beam pro is a bit different. It requires you to warm up your tire before you do the roll down calibration. Once it’s connected it will tell you to maintain a speed range for two minutes. They do this because the change in heat on the tire can affect your roll down time.
I don’t think you need to calibrate the Power Beam Pro every time if you keep your tire pressure and tire tension the same, and you also stay in a room that’s about the same temperature every time. Personally, I would do this maybe once a week. Although you can certainly do it before every ride. It only takes two minutes.
How often should I calibrate?
That’s going to depend on how accurate you want your numbers. For the most anal of you, you’ll want to do it every ride.
I’m using a Wahoo Kickr right now and I calibrate once every week or so. I’ve found that the Kickr stays very consistent. My calibration numbers are always around 419. That’s telling me that my Kickr is staying calibrated day in and day out. Wahoo Fitness tells us that you only really need to calibrate your Kickr the first time you get it, then again if there is a large temperature change or you let it sit for a long time.
For the Kinetic inRide and Power Beam Pro I might calibrate every ride. That’s because there are a couple more variables in the equation (tire, air pressure, and wheel pressure). If you can keep those consistent you might be able to get away with it more often.
How do I calibrate during a ride?

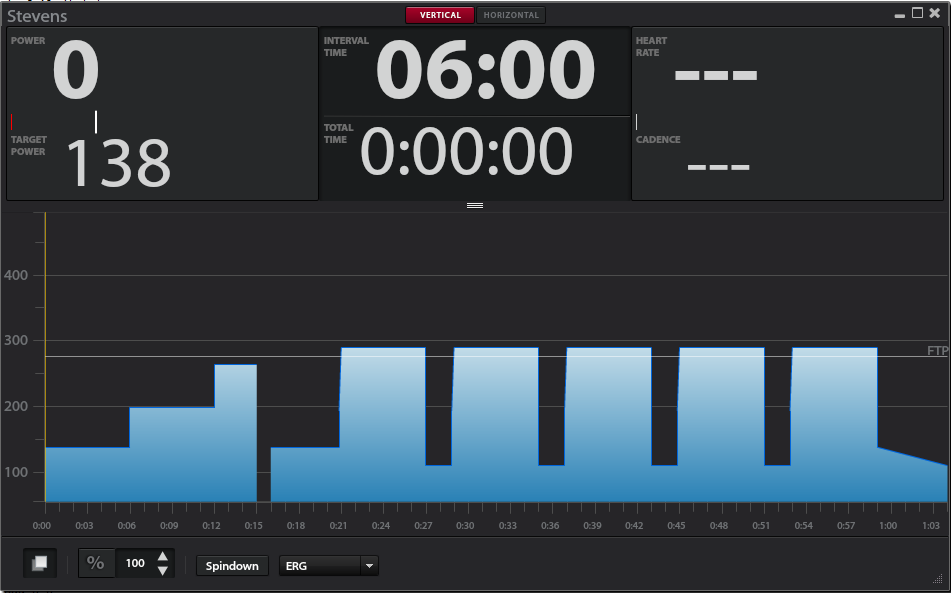

We’ve added a Spindown button to the main workout window. You can also push “c” on the keyboard.
Once your calibration is complete the calibration window will automatically close and your workout will start up again.
That’s great, but where’s my VirtualPower rolldown?
This is the first step in that process. We don’t have an ETA for you at this time.
New Kinetic inRide Device Type
There’s a new device type to pair called “Kinetic inRide”. You’ll want to use that device type instead of the standard Bluetooth Power Meter. This allows you to select the pro fly wheel and do roll down calibration.
New Client/Server API (Caution, geek speak be here)
We’ve redone our entire client/server api in our desktop app and workout creator. We did this for a few reasons.
1) We’ve stripped out our API code from our web server code. We now have a different set of servers for all client/server interactions. This should increase performance on the website and allow us to fine tune stuff in the future.
2) We’ve switched to standard HTTPS communication. We we’re using AMF3 serialization between AIR and .NET, but now we’re just using the standard get/post/put/delete verbs against HTTP. This is the first step in moving away from AIR/Flash and being able to develop mobile apps.
3) We’ve starting redoing the guts of our website. We’ll be moving away from Umbraco 4.7 and to ASP.NET MVC4. This has been in our plans for a while. MVC4 will allow us to make changes much more quickly and have a much faster, more robust site.
Along with the new code of our website you’ll get a new look and feel to some of the pages. We’ve been working with a design team to re-do the entire site, but that will be an ongoing process.
Okay, that’s it!
Ride hard and ride safe!
-Nate Pearson
Share this Post
Thanks guys, looks like some really good foundation work there – often un-appreciated but so important. Looking better all the time, fabulous job all.
Hi,
Great to hear that the nice app is getting even nicer!
In the API changes you mention that you are moving to standard HTTPS communication to be able to develop mobile apps. Do you have any guestimate of the schedule for an iPad app?
Isn´t there a way to make calibration automatic? I mean, in this method you have to do your warm up, step down, press the c key, go back to the bike, do the calibration, step down again, press done, go back to the bike and then finally continue the workout. My notebook is always in front of me, not on my side.
My suggestion is to create an automatic feature to do the calibration after 2, 5 or 10 minutes after start, without having to stop everything. This and the PC support for BT 4.0 is what is keeping me away from buying a $200 inRide accessory that makes marginal gains over Virtual Power
Aldo,
I’m working on the Windows InRide support now. Something like your suggesting for automatic calibration might work. I think it would switch to spindown mode, pause the workout and the calibration window would appear until the calibration completed. The only downside I see is that it could happen in the middle of an interval.
-Reid
Thanks Reid, Normally my warm up takes more than 10 minutes, so that should be enough for warming up KK properly. That is why I suggested to create an option on settings to start calibration after x minutes, so anyone can choose when it is the right moment during the workout.
Other than that, the only “problem” with TR is the fact that it makes me go over my red zone all the time. I am usually have to go easy on my first intervals so I have something to give at the end (but it is definetly not your problem he, he…)
Keep up the good work. Very happy customer here!
can someone help, trying to set up my in ride after not using it for the summer. Can’t get past “requesting calibration mode…….”
Is there anyway I can adjust the power being read by +6%.
I am using a wahoo kicker trainer indoors and a stages power meter when writing outside. As a test I mounted my stages power meter on my trainer bike indoors mounted on the kicker, and I captured the power from the kicker directly into your trainer Road software and the power read by the stages into a Garman 800. What I found is the stages was reading about 6 to 8% higher than the wahoo trainer. It would be really helpful if I could somehow tell Trainerroad to increase all power readings by 6%, then the efforts indoors on the trainer would match my outdoor workouts. Is this possible in your software?
Tom Turney
719-359-5132
