4iiii precision battery cap / o-ring replacement

Hi all,

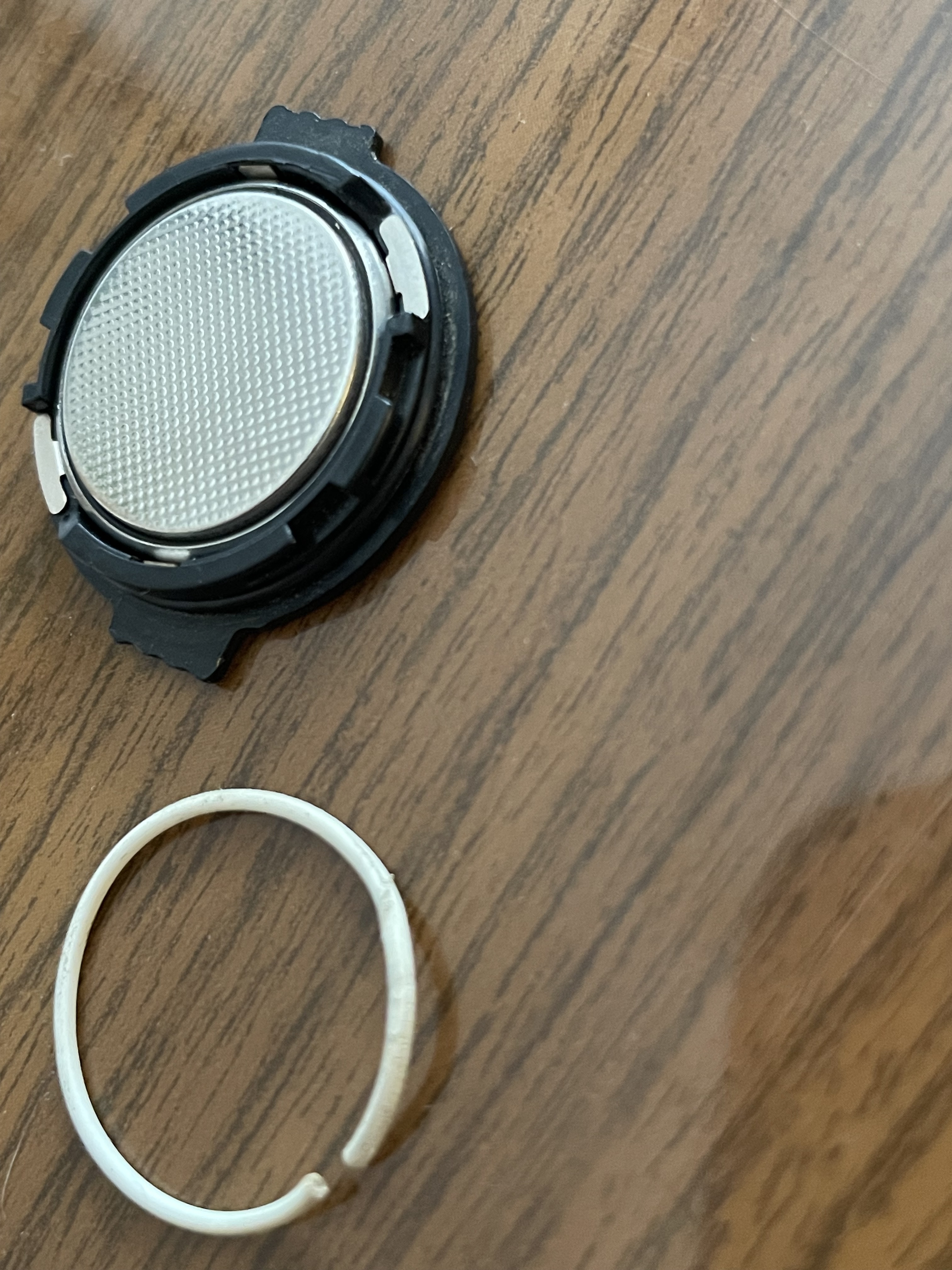

I just noticed that the white o-ring sealing the battery cap (precision gen2(?)) is broken.

I am unable to find a replacement available (EU) - only the full cap which is kinda expensive (10+€). Any hint /ideas where to find or an alternate which also fits?

Thanks and cheers!

1 Like

For another device I found generic o rings on line for a much more reasonable price. Without Vernier Callipers to measure things up its a bit tricky to find the right size :-/

No ideas, but have the same issue on last battery change. Cheapest I’ve found is €15 with delivery for the battery cap. Which is still a lot for just the o ring!

Damn - maybe I’ll get into the weeds and try to estimate the size and shop for some generic ones. The original one is torn so I’ll get only a rough house number when I try to measure it anyway…

I got a reply from the 4iiii support: The dimensions are 1 x 17 mm. So I’ll look for a generic one in a hardware store.

1 Like

ebay order gone in, although a couple of weeks delivery from Germany to Ireland.

Same, they gave me the dimensions and I bought a few generics. It’s been fine

I googled the supplier in the UK and the nice lady there just sent me one for free.

1 Like

Hi

Can you share the Oring you find ?
At which store or online store you find it ?

HI Could you share where you bought the Oring ?

Thanks

I bought mine from ebay (Germany). There are still plenty sellers out there (search phrase: “oring 1 17”). Overseas I don’t now though - I guess you have to do the math to get the imperial units and order some different ones to test them :man_shrugging:

1 Like

Had the same issue. Found this thread. Followed instructions. Solved!
Thank you very much!

→ online-dichtungsshop O-Ring 17x1
2,50€ incl. shipping in Germany, arrived within two days

Fits perfectly!


Suitable replacement O-rings can be purchased on line from Ace Seal at https://www.aceseal.com for $0.25 plus shipping. I got 10 of 17 mm x 1 mm (with 70 density). I will give away five of them for free.
Contact me at ganfield@msn.com


Put “O-ring” in the subject line of your email

1 Like

any idea if these are the same size for stages? They dont seem to be responding to emails as of lately :wink:

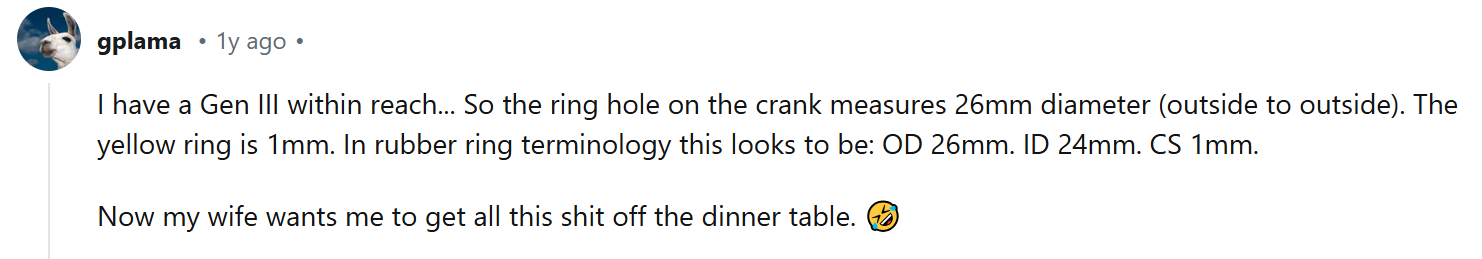

For Stages, gplama posted on another forum:

Just get an assortiment of o-rings from amazon. These are really cheap and handy to have around

Just ran into this page on my quest to find a new o-ring for my 4iiii precision power meter. The original white o-ring appears to be very brittle unfortunately.
Anyway, while searching for these o-rings I came across at least 2 types of material, being NBR and EPDM. NBR seems to be suitable for environments involving oil while EPDM is being used for weather resistant environments. I also found that Garmin recommends to only use EPDM rings when replacing.

Can anyone tell me if it’d be harmful to replace the original o-ring with an NBR one? EPDM seems to be much harder to find.

1 Like

IIRC I bought NBR without much thinking and until now I had no problems at all.
