Lake MX242 Delamination

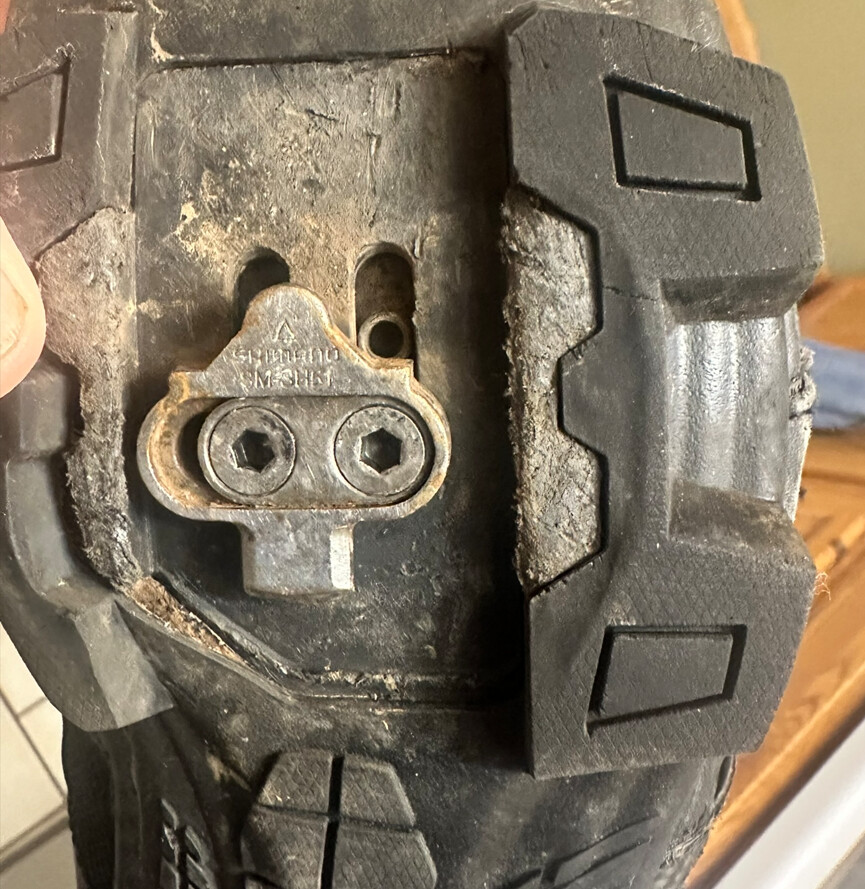

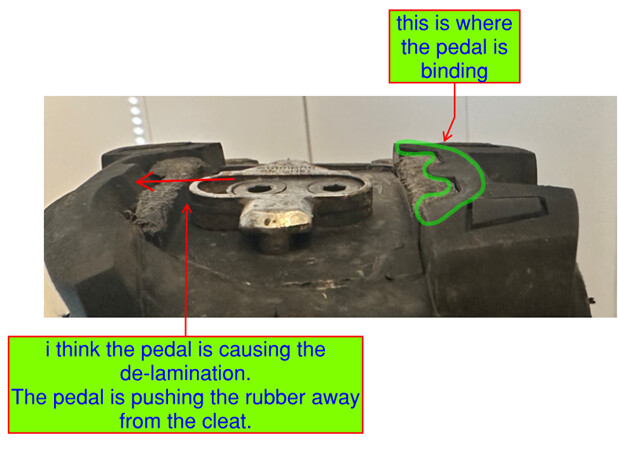

I’m a big fan of Lake shoes. Rode the MX241 for 4 years. Recently purchased the new version, MX242. Same great fit/feel. Small (big) problem. The rubber portion of the shoe would bind horribly with the pedal surface (shimano spd), making it difficult to clip in/out. Also would not let float happen freely (resulting in knee pain). So I took a Dremel and ground the rubber down, problem solved I thought. Then the shoes started to delaminate. Lake is saying I should have shimmed the cleat. I feel like the rubber was out of tolerance. I’ve never had to shim a cleat before. Any one else experience this? Any advice on what I do with these shoes? Thanks.

These are the old MX241. Same cleat position, zero issues:

I have the same shoes MX242 and also had the prior MX241. I had a similar issue with no float and started having knee pain. I didn’t think of shimming the cleat but I don’t think I would have wanted to do that option. Plus I don’t remember any shim’s being included.

Like you, I ended up taking a box cutter knife and Dremel to remove the material around the cleat in what you show as binding to get a smooth float. I had to do the same with the MX 241 but not as much. As far as delamination I haven’t had that problem with either shoes but I think I see what you are saying in the one picture. Lake MX242/241’s are not the best with SPD’s but I love the shoes and well worth it.

The instructions on Lake’s own website says to shim the cleat, but if you can’t shim, trim the lugs.

Yeah, no shim pack included in my shoe box either. What stinks is, by grinding away the rubber I was able to get the prober float/clearance. The delamination happened AFTER I ground down the rubber. And it happened during one ride (twas a long ride). Thanks for the feedback.

Update:

:rofl:

I have the same shoes and had the same binding issue with both Shimano and Garmin pedals. I didn’t bother to look on the Lake webpage and just used a Dremel and utility knife like I’ve done with most shoes I’ve owned over the years. The one difference with my trimming is that the rubber and plastic are trimmed to the same height. No issues yet, but I only have a few rides on them.

Well I’m impressed. Lake said they would honor the warrantee, and replace my shoes. I had to send them the damaged pair first (understandingly). Hopefully they don’t change there minds after looking at them! I’ll be using the shims this time. Thanks for the help guys.

Just ordered MX242 shoes :slight_smile: What pedals did you and others use with MX242?? Wondering what to go with, PD-ED500 SPD (Road) as similar to my old existing PD-A520 or PD-EH500 SPD (MTB), I like the ides of these as the surround can spread the load to the pedal… but would these foul with the rubber? Or maybe I’m safer with M520 or M8100XT as they have no surround. Thx.

I use both the 8100 and 8120. I like the 8100 better. 8120 really doesn’t have much more surface contact with the shoe. And I swear they un clip slower than the 8100. (Yes tension is adjusted the same.)

And absolutely nothing wrong with 520/540.

So I received the new shoes. They needed zero shimming or modification to fit any of my pedals.

I’m convinced my original pair were out of spec.

Love these shoes….

Especially now!

Wow, good result, so no shim or cutting needed and they work on both your 8100 & 8200 pedals then?

I am guessing this is because when twisting to release the 8120 extra cage might be catching on the rubber tread of the shoe? I like the idea of the 8120 cage having more surface contact to spread the load. Does the 8100 feel like a pressure focus point on the foot, as doesn’t spread load so much, can you feel it?

Correct - didn’t have to touch them. Just bolted on the cleats. :+1:

I can’t explain it. Just tooling around I can clip out of either just the same. But real time on the trail, I’ve gone to jump out of the cleats, and the 8120’s have just a slight hang-up, and I’ve got the medical bills to prove it…

Pressure wise on the bottom of your feet, I feel no difference. I think the bearing surface is almost exactly the same. That big loop does not touch your shoes. I think these are more for if you are un-clipt, you have a surface to land on.

Or - maybe there are shoes that do take advantage of the added surface on the 8120. More gravity type shoes, like a 5 10. Guess I won’t sell them just yet. lol

Thx, I’ve ordered the 8100’s, so will see how I get on. Did you have to ‘pack’ or use a ‘spacer’ on the cleat to get the clearance Lake say you need? (0.25mm to 1mm between the cleat and the shoe’s rubber lugs)

No spacer req’d.
